Tractors

ENGINE Engine manufacturer TYM A1700N6 IDI TYM A1700N6 IDI Type Natural Aspiration Natural Aspiration Gross engine power 24 hp | 18 kW 24 hp | 18 kW PTO power 21 hp | 15.7 kW 21 hp | 15.7 kW Rated engine speed 2100 rpm 2100 rpm No. of cylinders 3 3 Displacement 104.5 cu. in. 104.5 cu. in. Air cleaner Dry Element Dry Element Alternator 12V, 50A 12V, 50A Fuel system IDI IDI POWERTRAIN Transmission type Synchromesh HST No. of speeds F12xR12 3-Range Max. traveling speed 11.7 mph 15.2 mph Brakes Wet, Multi-disc Wet, Multi-disc Steering Hydrostatic Hydrostatic Clutch Dry Single Type No HYDRAULIC SYSTEM Pump type Single Gear Pump Single Gear Pump Implement flow 4 gpm 4 gpm Steering flow 7.5 gpm 7.5 gpm Total flow 11.5 gpm 11.5 gpm Category, 3-point hitch I I Hitch lift capacity 3306 lb 3306 lb Hitch lift capacity at 24 inches behind link ends 2425 lb 2425 lb Lift control type Position Position No. of standard remote valves Optional (up to 4) Optional (up to 4) PTO PTO type Independent Independent PTO control Wet, Multi-disc Wet, Multi-disc PTO rear 540 rpm 540 rpm CAPACITIES Fuel tank 7.1 gal 7.1 gal Coolant 5.3 qt 5.3 qt Crankcase 4.5 qt 4.5 qt Transmission/Hydraulics system 8.9 gal 9.8 gal Front axle 1.7 qt 1.7 qt DIMENSIONS & WEIGHTS Overall length with 3-point hitch 120.9 in. 120.9 in. Overall width 56.3 in. 56.3 in. Wheelbase 65.7 in. 65.7 in. Height to top of ROPS 97.3 in. 97.3 in. Min. ground clearance 14.4 in. 14.4 in. Min. turn radius with brakes 7.5 in 7.5 in Min. turn radius without brakes 104.7 in 104.7 in Weight with ROPS 2989 lb 2969 lb STANDARD TIRES R1 Agricultural - Front 8-16 8-16 R1 Agricultural - Rear 12.4-24 12.4-24 R4 Industrial - Front 28x8.50-15 28x8.50-15 R4 Industrial - Rear 43x16.00-20 43x16.00-20

ENGINE Type: 3-Cylinder, CRDI, Water-cooled Turbo Diesel Model (Tier 4): L3C19-T Engine HP (Gross): 35 PTO HP: 28.0 Rated Speed (RPM): 2,600 Displacement (cu. in): 114.7 Fuel Tank Capacity (gal): 10.6 Alternator: 12V – 85 Amps DRIVE TRAIN Transmission: Synchro Shuttle/HST Speeds: 12F / 12R Brakes: Wet, Multi Disc Steering: Hydrostatic Power Steering PTO Type: Independent Rear, rpm: 540 Mid PTO: Field Option (2000 rpm) Rear PTO: Standard (540 rpm) HYDRAULIC SYSTEM Implement pump (gpm): 8.2 Steering pump (gpm): 4.1 / 5.5 (HST) Total flow (gpm): 12.3 / 13.7 (HST) Category, 3 pt hitch: CAT 1 Hitch Lift capacity (lb.): 1,808 Lift control type: Position / Draft Remote Valves: 2 Pairs DIMENSION Overall length with 3pt (in.): 124.3 Wheelbase (in.): 66 Min. overall width with Ag tires (in.): 60 Height to top of ROPS with Ag tires (in.): 93 TIRE SIZE Ag Front/Rear: 7 – 14 / 11.2 – 24 Industrial Front/Rear: 25 x 8.5 – 14 / 43 x 16 – 20 Turf Front/Rear: 25 x 8.5 – 14/ 41 x 14 – 20 WEIGHT Total weight without ballast (lbs.): 3,285

ENGINE Type: 3-Cylinder, CRDI, Water-cooled Turbo Diesel Model (Tier 4): L3C19-T Engine HP (Gross): 35 PTO HP: 28.0 Rated Speed (RPM): 2,600 Displacement (cu. in): 114.7 Fuel Tank Capacity (gal): 10.6 Alternator: 12V – 85 Amps DRIVE TRAIN Transmission: Synchro Shuttle/HST Speeds: 12F / 12R Brakes: Wet, Multi Disc Steering: Hydrostatic Power Steering PTO Type: Independent Rear, rpm: 540 Mid PTO: Field Option (2000 rpm) Rear PTO: Standard (540 rpm) HYDRAULIC SYSTEM Implement pump (gpm): 8.2 Steering pump (gpm): 4.1 / 5.5 (HST) Total flow (gpm): 12.3 / 13.7 (HST) Category, 3 pt hitch: CAT 1 Hitch Lift capacity (lb.): 1,808 Lift control type: Position / Draft Remote Valves: 2 Pairs DIMENSION Overall length with 3pt (in.): 124.3 Wheelbase (in.): 66 Min. overall width with Ag tires (in.): 60 Height to top of ROPS with Ag tires (in.): 93 TIRE SIZE Ag Front/Rear: 7 – 14 / 11.2 – 24 Industrial Front/Rear: 25 x 8.5 – 14 / 43 x 16 – 20 Turf Front/Rear: 25 x 8.5 – 14/ 41 x 14 – 20 WEIGHT Total weight without ballast (lbs.): 3,285

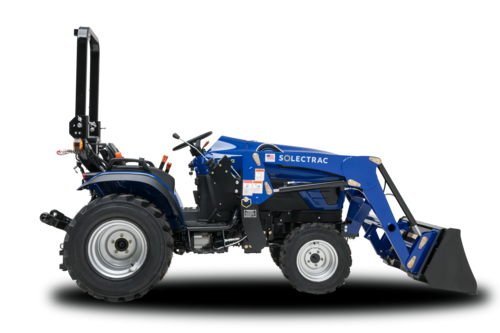

### Specifications The e25 offers all the capabilities of a diesel tractor and more. * Horsepower25 HP (18kW) Category
20 PTO HP (15kW) Category * Front LoaderLifting Capacity
At Pivot Pin: 1300 lbs At 500mm forward: 897 lbs Bucket Width: 50 (1270mm) * TransmissionFour-wheel drive
Number of Gears: 3 ranges Differential Lock: Yes * Max Torque84Nm (62 ft\*lbs) * On Board Battery22 kWH Lithium-Ion * Voltage72 V * Charging Time8 hours @ 220 VAC 30A
12 hours @ 120 VAC 15A * * Battery Life2500 cycles @ 25�C * Operating TemperatureMin: -10 �C (14 �F) Max: 55 �C (131 �F) * Charging TemperatureMin: 0 �C (32 �F) Max: 40 �C (104 �F) * Towing3000 lb (including trailer weight

### Specifications The e25 offers all the capabilities of a diesel tractor and more. * Horsepower25 HP (18kW) Category
20 PTO HP (15kW) Category * Front LoaderLifting Capacity
At Pivot Pin: 1300 lbs At 500mm forward: 897 lbs Bucket Width: 50 (1270mm) * TransmissionFour-wheel drive
Number of Gears: 3 ranges Differential Lock: Yes * Max Torque84Nm (62 ft\*lbs) * On Board Battery22 kWH Lithium-Ion * Voltage72 V * Charging Time8 hours @ 220 VAC 30A
12 hours @ 120 VAC 15A * * Battery Life2500 cycles @ 25�C * Operating TemperatureMin: -10 �C (14 �F) Max: 55 �C (131 �F) * Charging TemperatureMin: 0 �C (32 �F) Max: 40 �C (104 �F) * Towing3000 lb (including trailer weight

ENGINE Type: 3-Cylinder, CRDI, Water-cooled Turbo Diesel Model (Tier 4): L3C19-T Engine HP (Gross): 35 PTO HP: 28.0 Rated Speed (RPM): 2,600 Displacement (cu. in): 114.7 Fuel Tank Capacity (gal): 10.6 Alternator: 12V – 85 Amps DRIVE TRAIN Transmission: Synchro Shuttle/HST Speeds: 12F / 12R Brakes: Wet, Multi Disc Steering: Hydrostatic Power Steering PTO Type: Independent Rear, rpm: 540 Mid PTO: Field Option (2000 rpm) Rear PTO: Standard (540 rpm) HYDRAULIC SYSTEM Implement pump (gpm): 8.2 Steering pump (gpm): 4.1 / 5.5 (HST) Total flow (gpm): 12.3 / 13.7 (HST) Category, 3 pt hitch: CAT 1 Hitch Lift capacity (lb.): 1,808 Lift control type: Position / Draft Remote Valves: 2 Pairs DIMENSION Overall length with 3pt (in.): 124.3 Wheelbase (in.): 66 Min. overall width with Ag tires (in.): 60 Height to top of ROPS with Ag tires (in.): 93 TIRE SIZE Ag Front/Rear: 7 – 14 / 11.2 – 24 Industrial Front/Rear: 25 x 8.5 – 14 / 43 x 16 – 20 Turf Front/Rear: 25 x 8.5 – 14/ 41 x 14 – 20 WEIGHT Total weight without ballast (lbs.): 3,285
